Rehabilitation Gait Training Walking Aids Electric Wheelchair Zuowei ZW518

Short Description:

One product is not only wheelchair but also a rehabilitation device.

Product Detail

Detail

Product Tags

Product Introduction

The gait training electric wheelchair is applied to the rehabilitation training of people who are bedridden and have lower limb mobility impairment. It can switch between electric wheelchair function and assisted walking function with one key, and easy to operate, electromagnetic brake system, automatic brake after stopping operation, safe and worry-free.

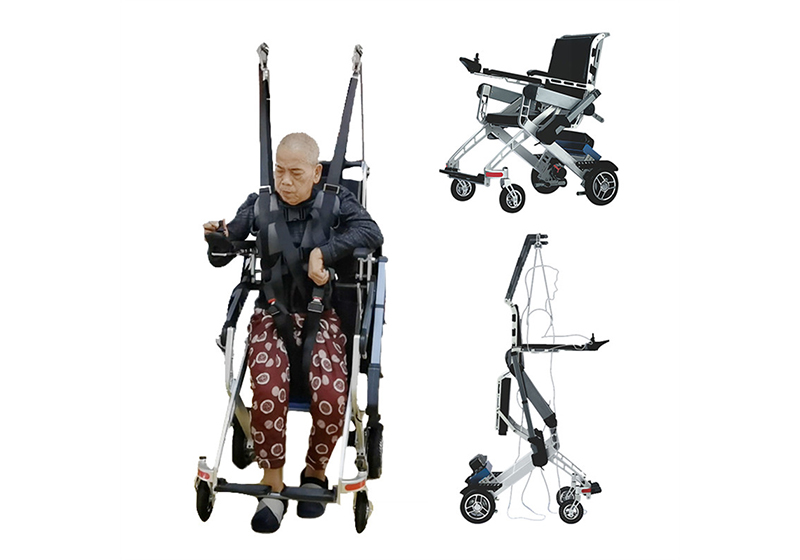

Rehabilitation Gait Training Walking Aids Electric Wheelchair Zuowei ZW518 (4)

Rehabilitation Gait Training Walking Aids Electric Wheelchair Zuowei ZW518 (3)

Rehabilitation Gait Training Walking Aids Electric Wheelchair Zuowei ZW518 (1)

Parameters

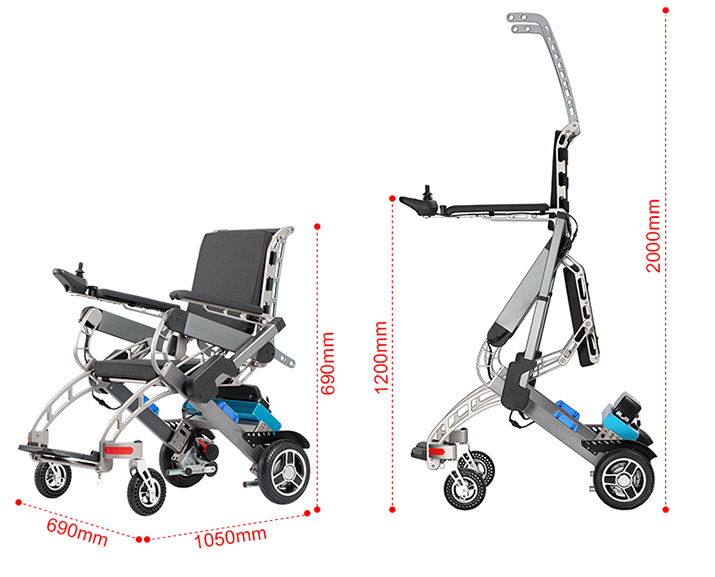

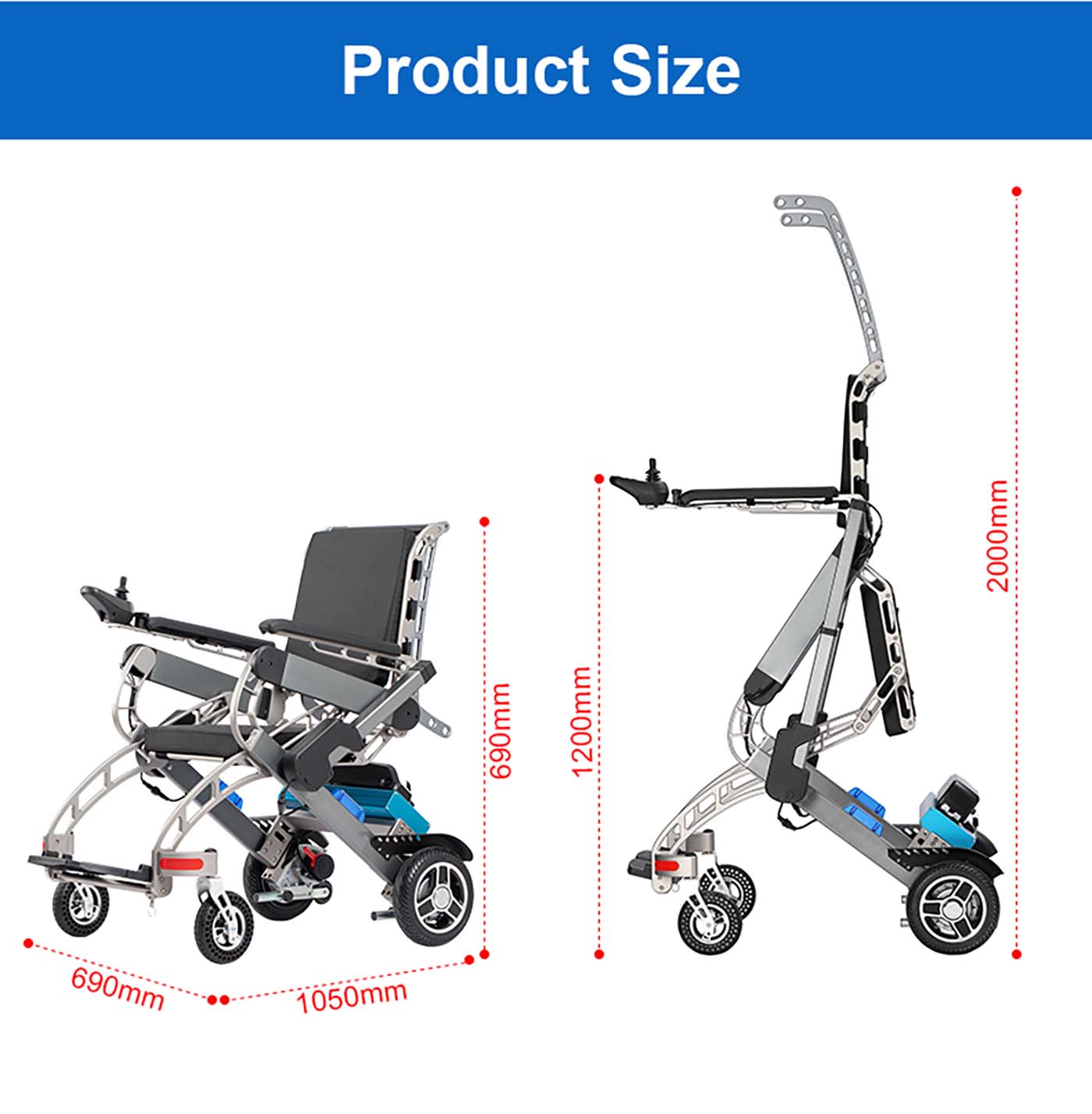

Sitting chair Size	1000mm690mm1090mm
Walking status size	1000mm690mm2000mm
Load bearing	120KG
Lift bearing	120KG
Lift speed	15mm/S
Security hanging belt bearing	Maximum 150KG
Battery	lithium battery, 24V 15.4AH, endurance mileage more than 20KM
Net weight	32 KG
Brake	Electric magnetic brake
Power charge lead time	4 H
Maximum chair speed	6KM
Walking auxiliary intelligent robot applicable to people in height 140-180CM and weight maximum 120KG

Feastures

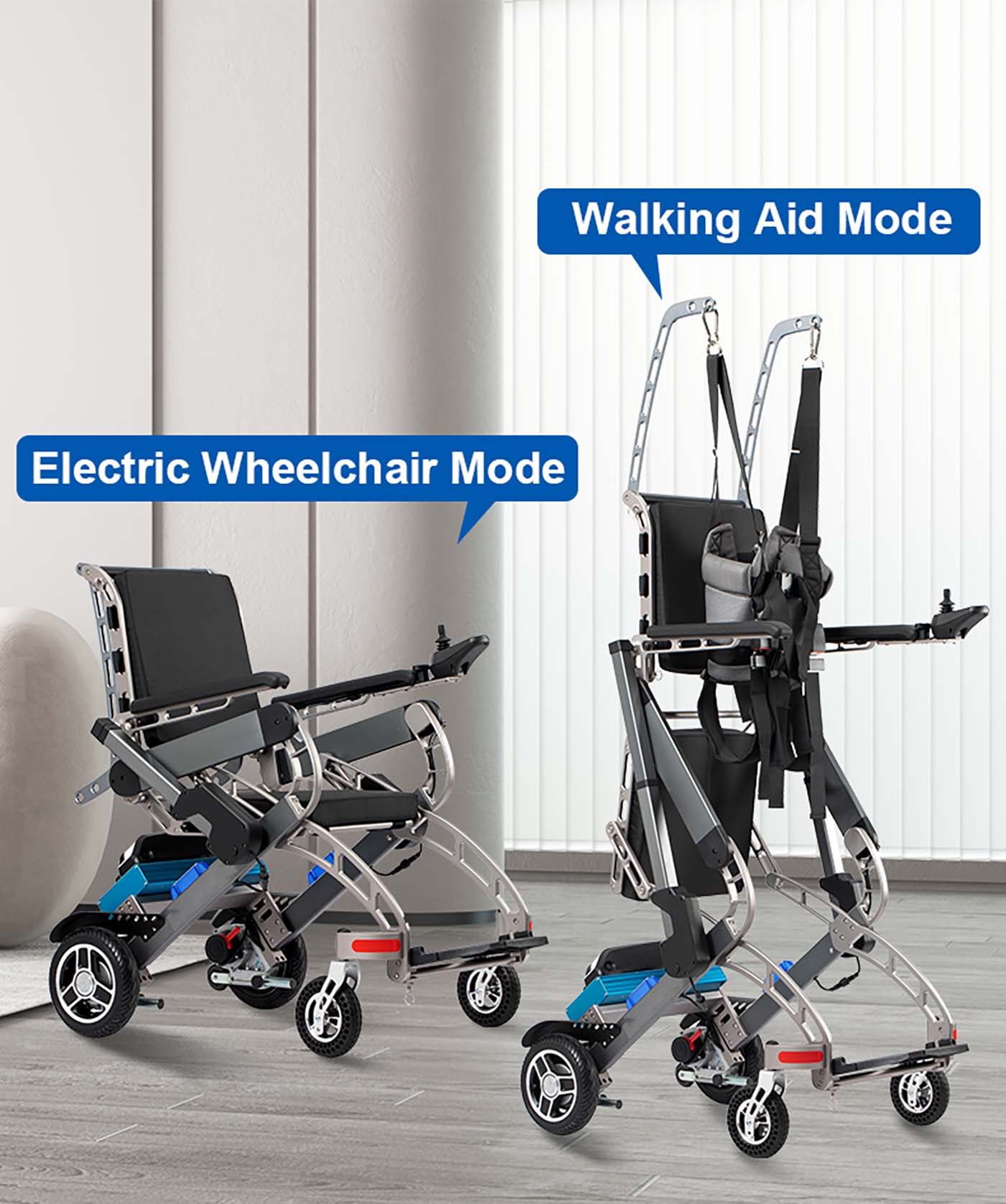

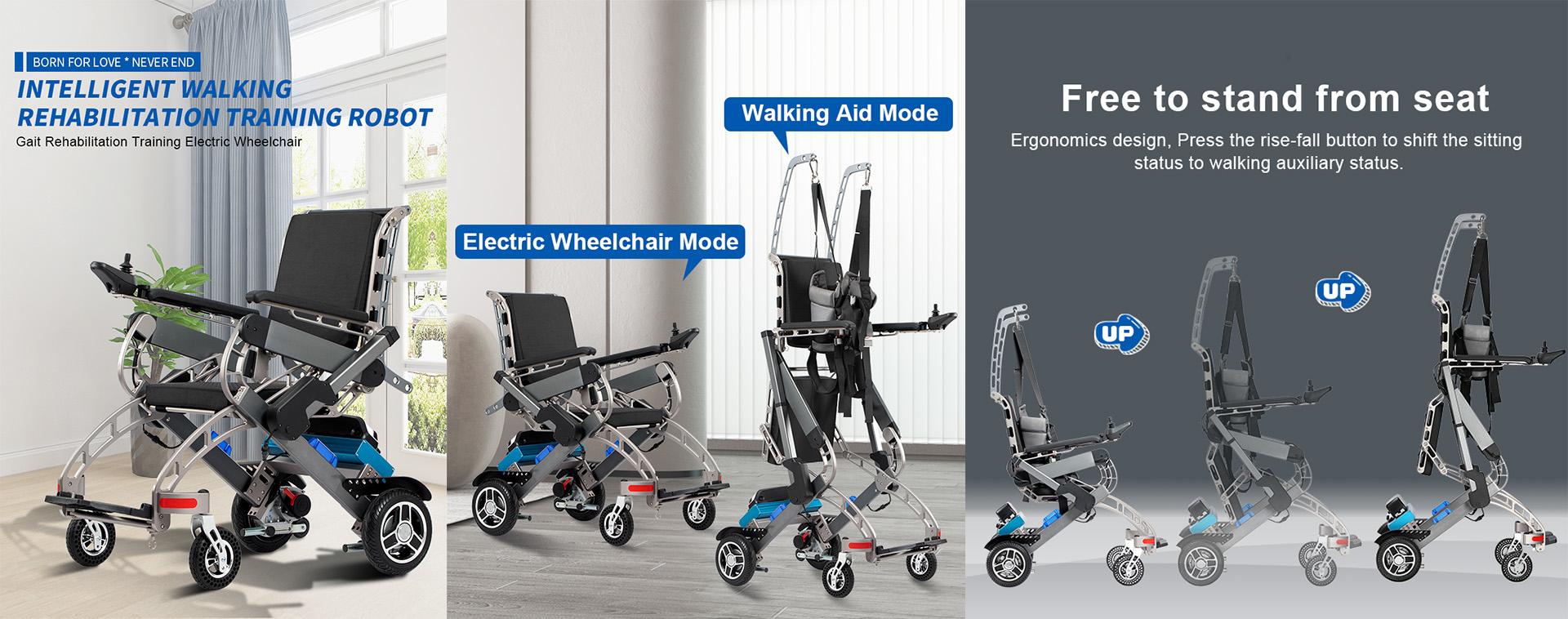

1. One button to switch between electric wheelchair mode and gait training mode.

2. Aiming at helping patients to get gait training after stroke.

3. Help wheelchair users to stand up and do gait training.

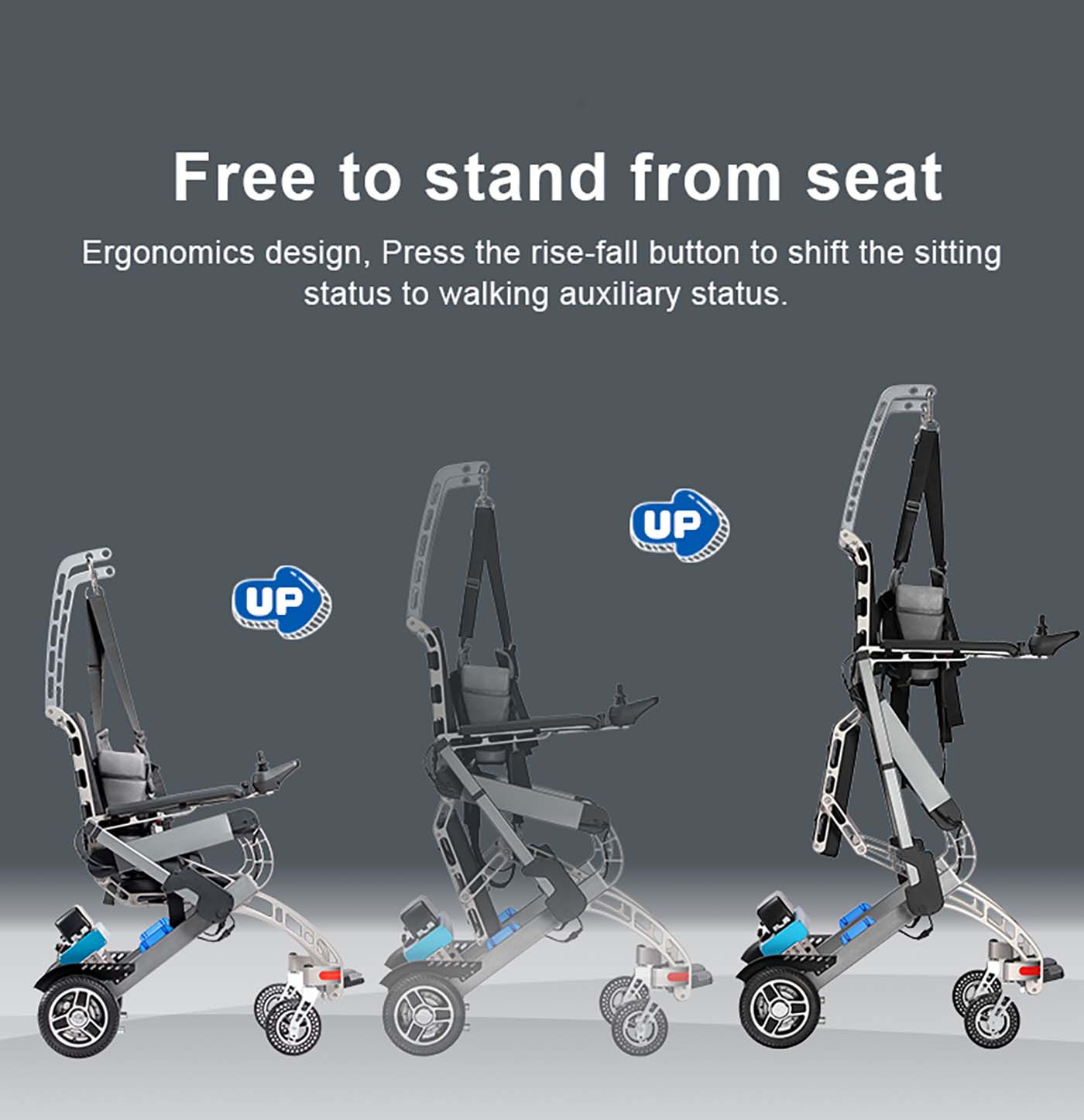

4. Enable the users to lift up and sit down safely.

5. Assist in standing and walking training.

Structures

Rehabilitation Gait Training Walking Aids Electric Wheelchair Zuowei ZW518

Gait Training Electric Wheelchair ZW518 is composed of

drive controller , lifting controller, cushion, foot pedal, seat back, lifting drive, front wheel,

back drive wheel, armrest, main frame, identification flash, seat belt bracket, lithium battery, main power switch and power indicator, drive system protection box, anti-roll wheel.

Details

Left and right two rear drive motor, backward , turn left, turn right, operation with one hand.

Equipped with lift driver, operation panel, drive armrest, backrest tec.

Backrest and safety belt holder are foldable.

The product is light in weight , small size after folding.

The controller is available to choose left and right side.

Application

Suitable for a variety of scenarios for instance

Nursing Homes, Hospitals, Community Service Center, Door to door service, Hospices, Welfare facilities, Senior-care facilities, Assisted-living facilities.

Applicable people

The bedridden, the elderly, the disabled, patients
