Powered Exoskeleton Lower Limb Walking Aid Robot Zuowei ZW568

Short Description:

The walking assist device enable the paralyzed elderly to walk

Product Detail

Detail

Product Tags

Product Introduction

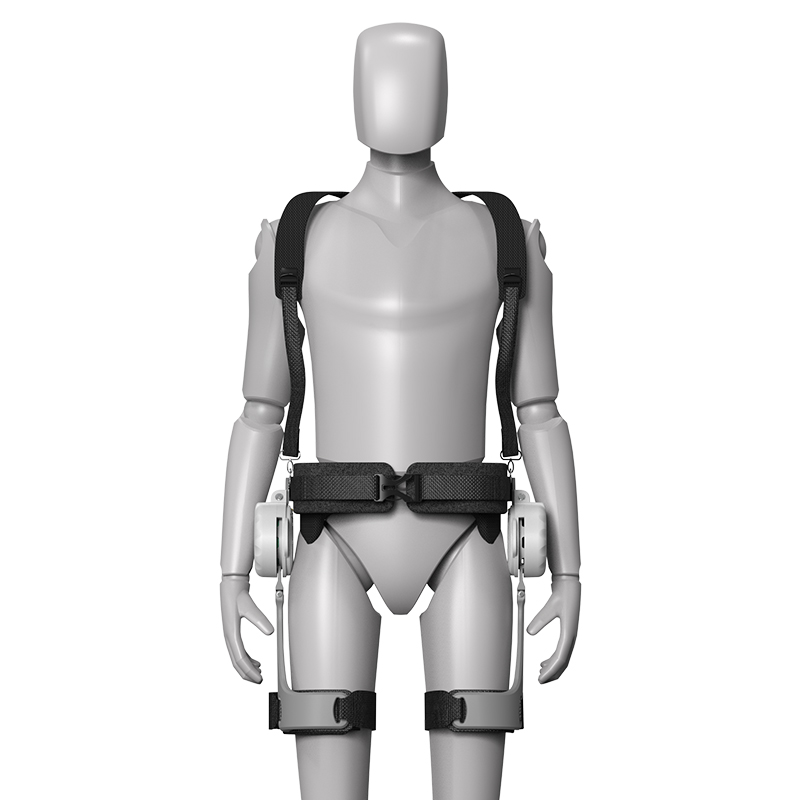

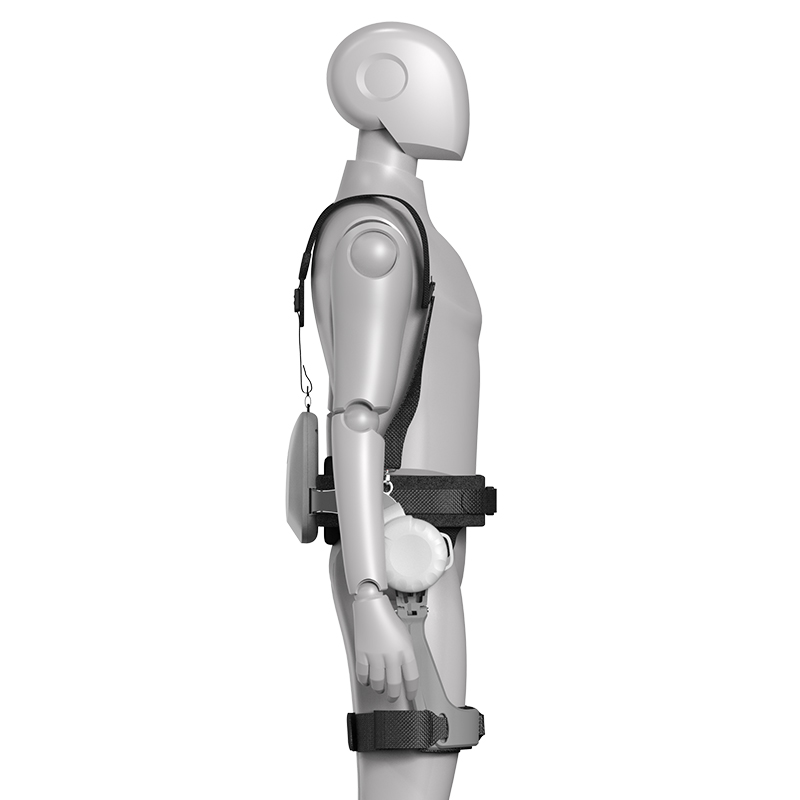

The intelligent walking aid robot ZW568 is a cutting-edge wearable robot. Two power units at the hip joint provide assisted power to extend and flex the thighs. The assistance will help you walk easier, save energy and improve your quality of life. With a small but powerful dual side power unit, providing sufficient power output for lower limb movement, up to 3 hours of continuous use. It can walk longer distances more easily, helping people with walking disabilities to recover their walking quality and climb up and down hills and stairs with less effort.

Powered Exoskeleton Lower Limb Walking Aid Robot Zuowei ZW568 (1)

Powered Exoskeleton Lower Limb Walking Aid Robot Zuowei ZW568 (2)

Powered Exoskeleton Lower Limb Walking Aid Robot Zuowei ZW568 (3)

Parameters

Related Voltage	220 V 50Hz
Battery	DC 21.6 V
Endurance time	120 min
Charging time	4 hours
Power level	1-5 grade
Dimension	515 x 345 x 335 mm
Working environments	indoor or outdoor except rainy day

Feastures

● Assist users in have daily rehabilitation training by gait training exercises to improve body function

● For people who can stand alone and want to increase their walking ability and speed for daily walking use

● it is used to assist people with insufficient hip joint strength to walk , improve health and life quality.

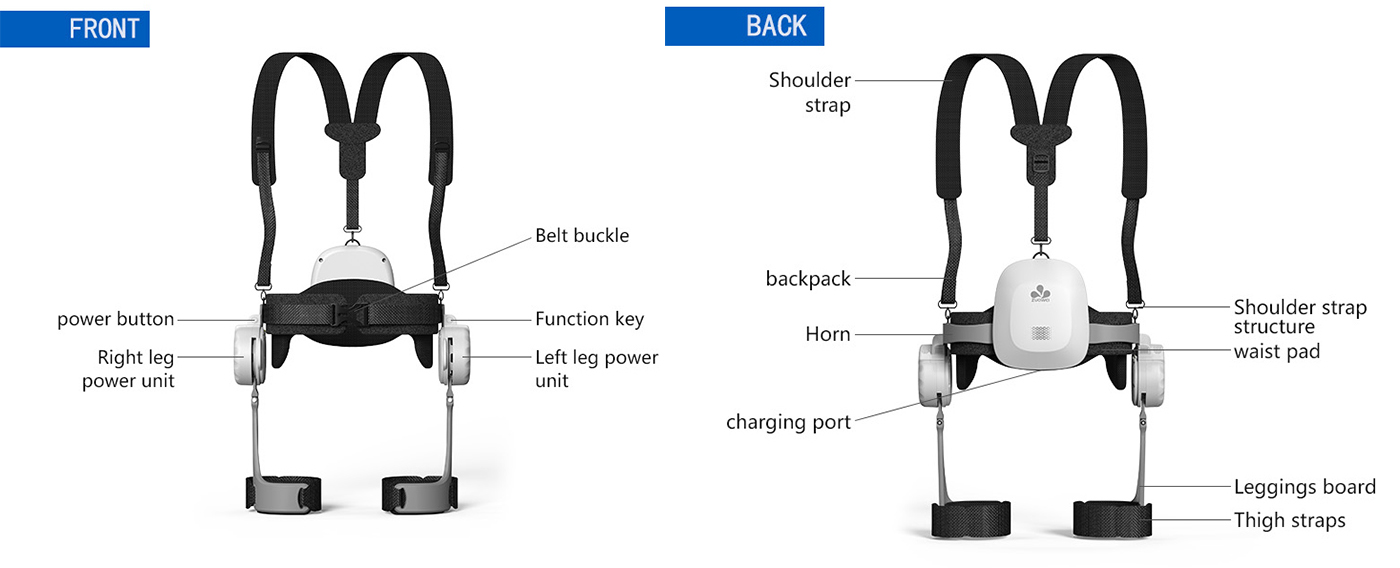

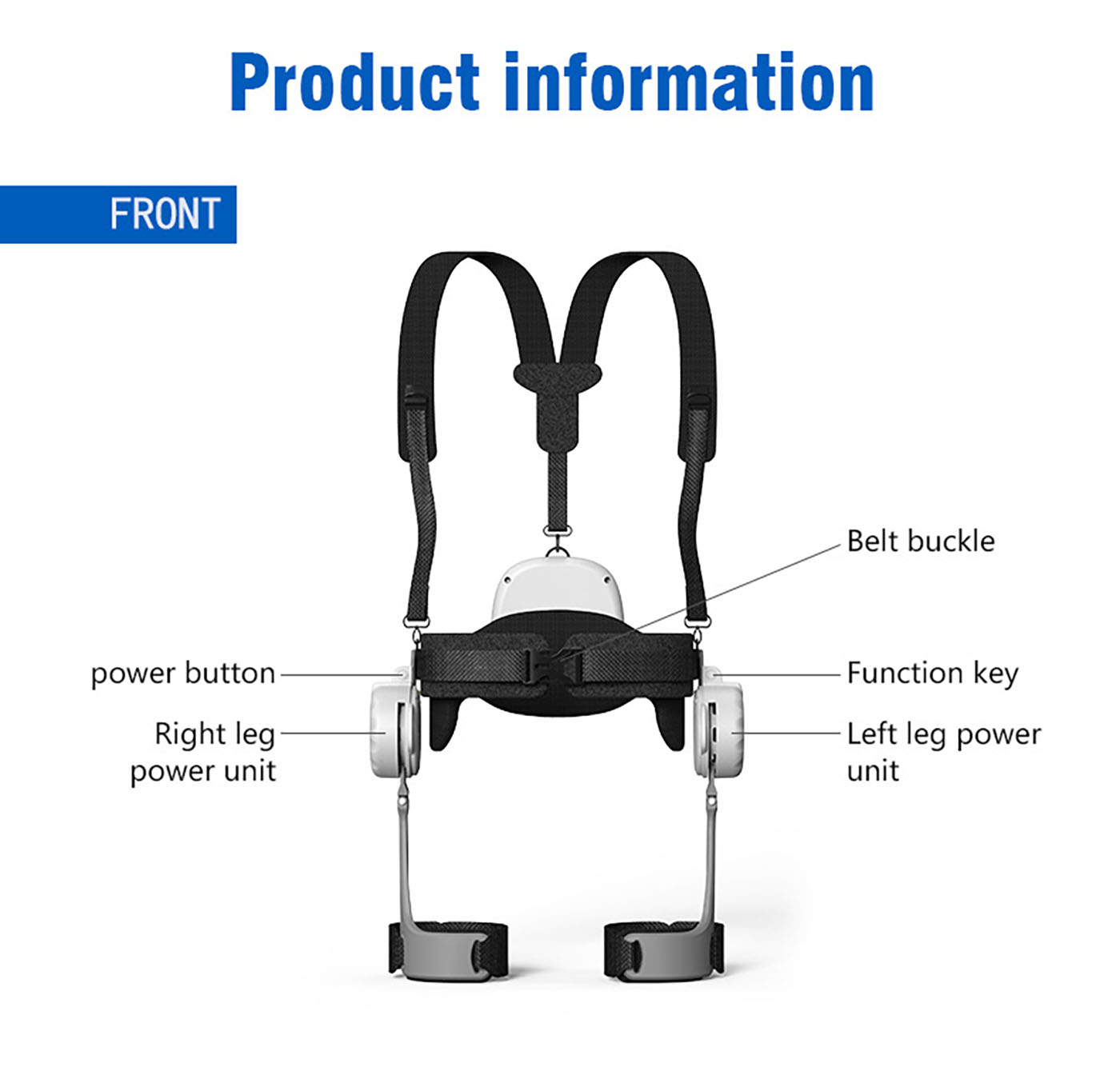

Structures

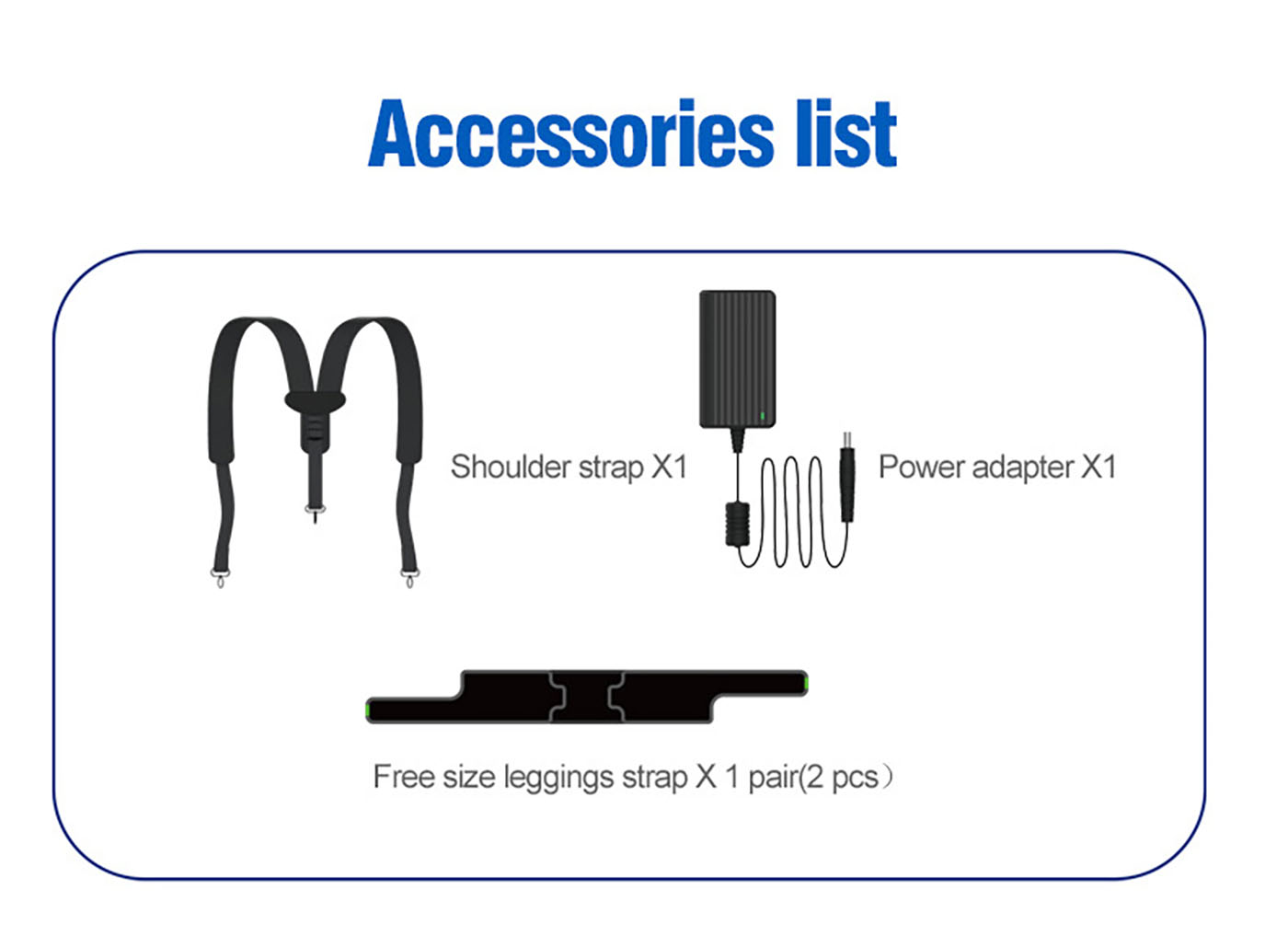

The product is composed of power button , right leg power unit, belt buckle, function key, left leg power unit, shoulder strap, backpack, waist pad, legging board, thigh straps.

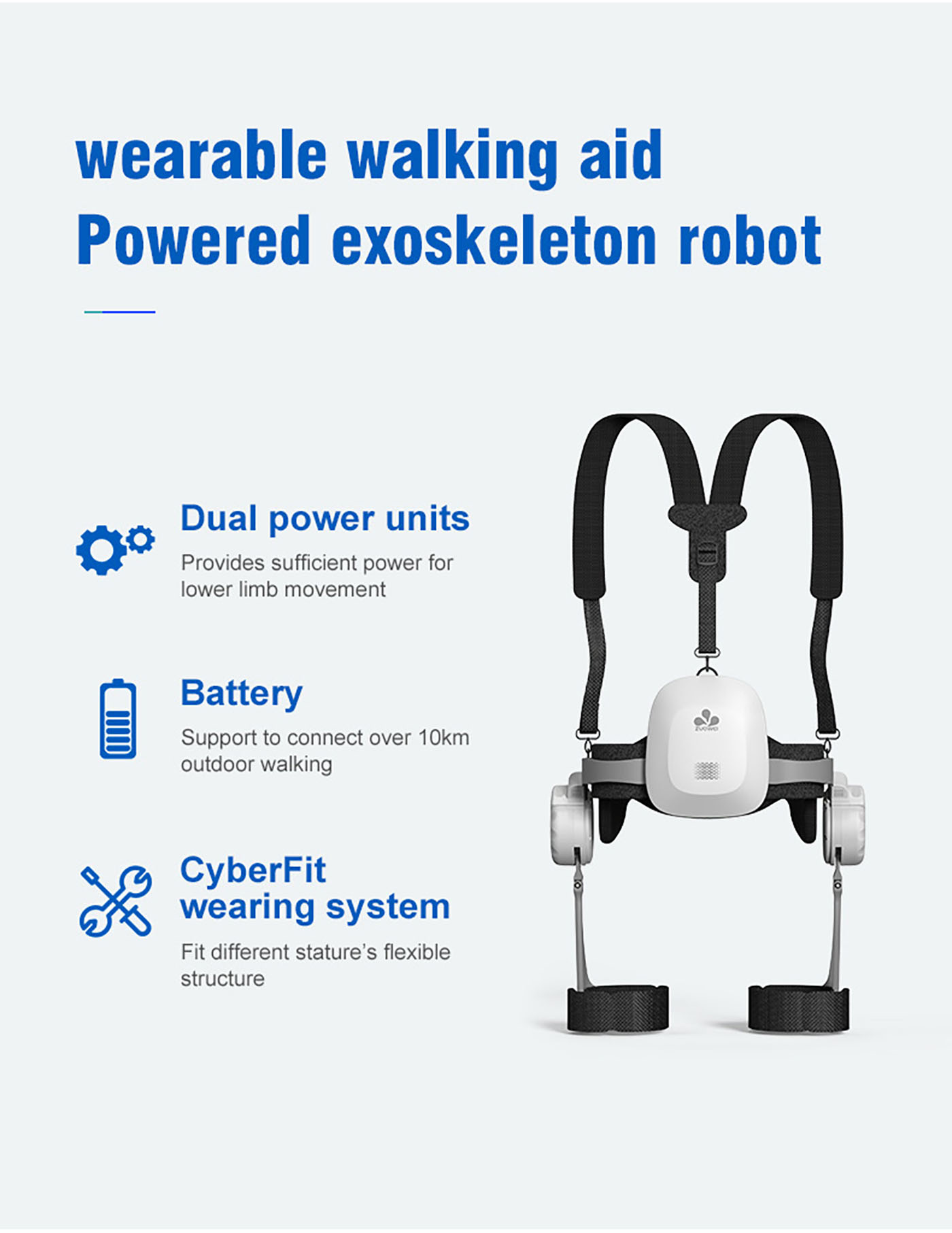

Details

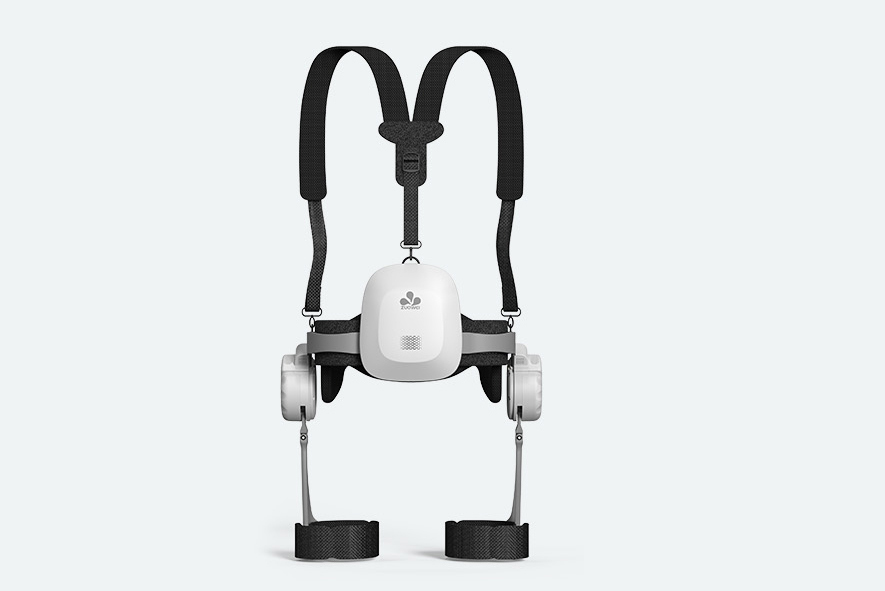

Dual power units

Provides sufficient power for lower limb movement

Battery

Support to connect over 10km outdoor walking

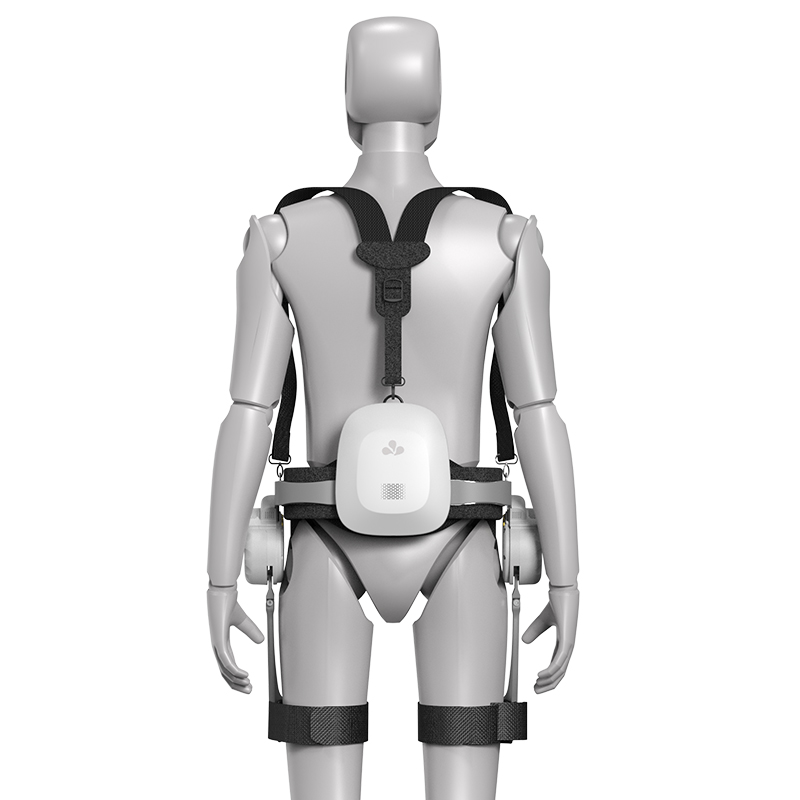

Cyberfit wearing system

Fit different stature s flexiblestructure

Powered Exoskeleton Lower Limb Walking Aid Robot Zuowei ZW568

Application

Suitable for a variety of scenarios for instance

Nursing Homes, Hospitals, Community Service Center, Door to door service, Hospices, Welfare facilities, Senior-care facilities, Assisted-living facilities.

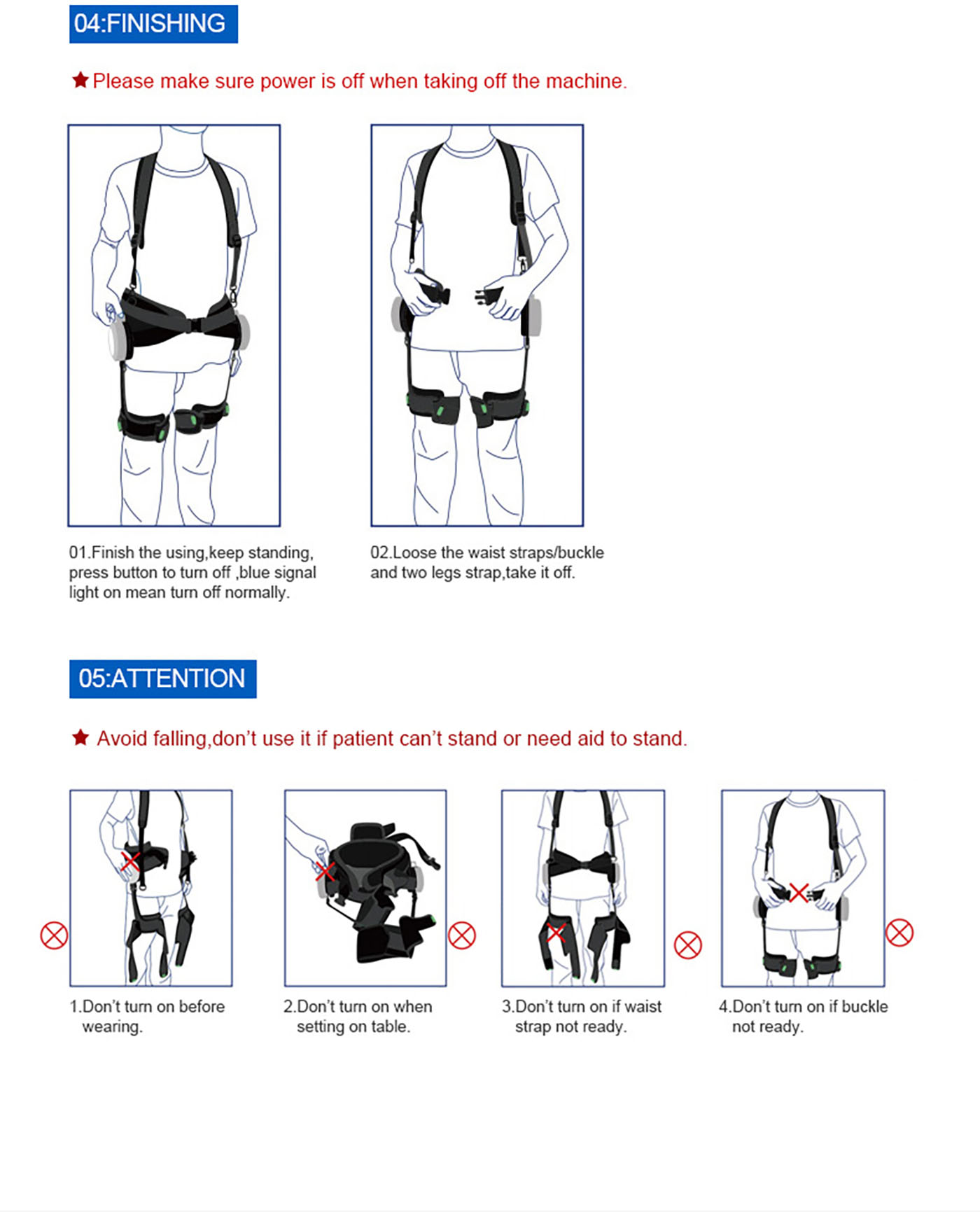

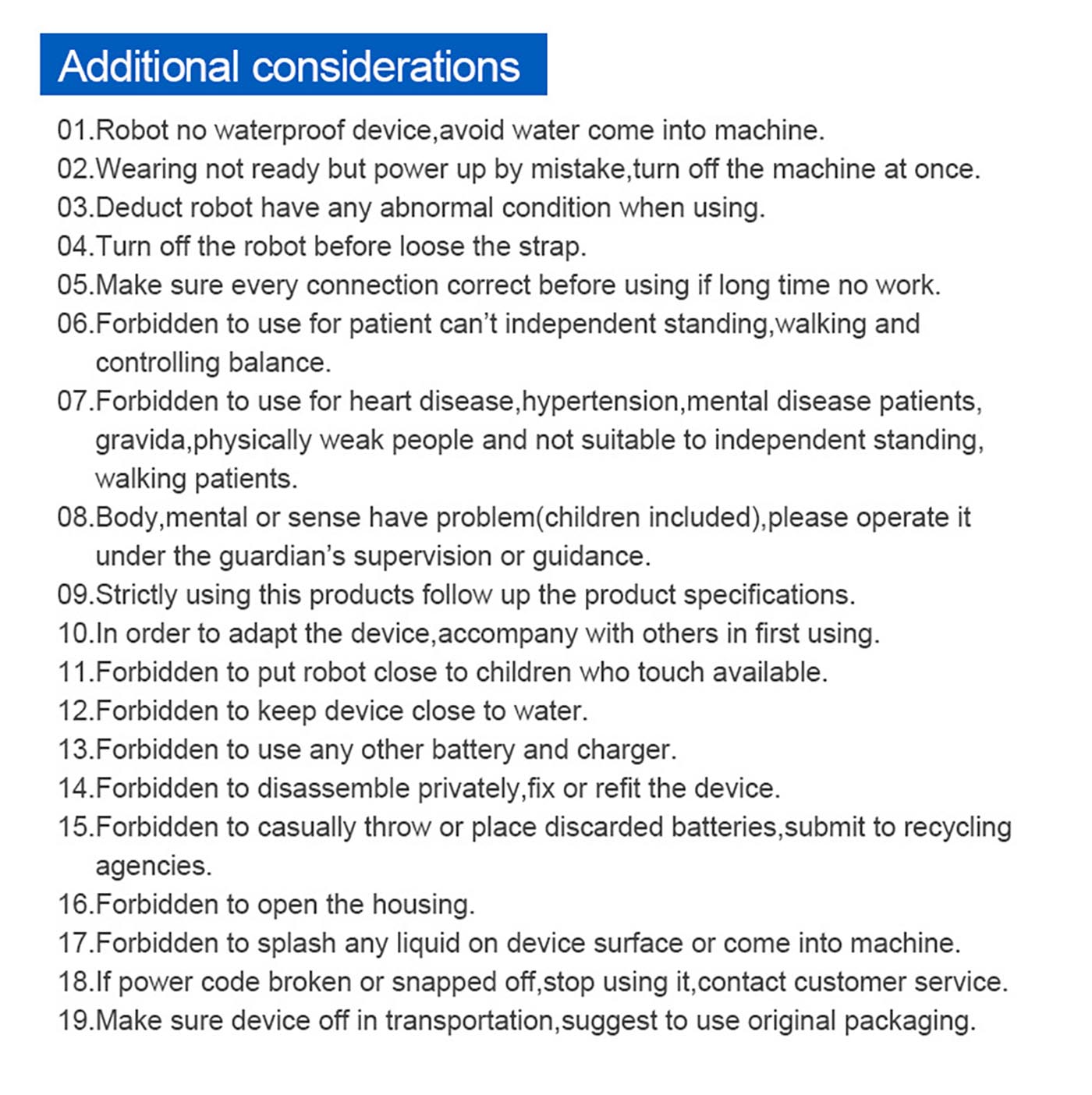

Additional considerations

01. Robot no waterproof device, avoid water come into machine.
02. Wearing not ready but power up by mistake , turn off the machine at once.
03. Deduct robot have any abnormal condition when using.
04. Turn off the robot before loose the strap.
05. Make sure every connection correct before using if long time no work.
06. Forbidden to use for patient can't independent standing , walking andcontrolling balance.
07. Forbidden to use for heart disease, hypertension, ental disease patientsgravida, physically weak people and not suitable to independent standingwalking patients.
08. Body , ental or sense have problem ( children included ) , please operateunder the guardians supervision or guidance.
09. Strictly using this products follow up the product specifications.
10. In order to adapt the device, accompany with others in first using.
11. Forbidden to put robot close to children who touch available.
12. Forbidden to keep device close to water.
13. Forbidden to use any other battery and charger.
14. Forbidden to disassemble privately, fix or refit the device.
15. Forbidden to casually throw or place discarded batteries, submit to recyclingagencies.
16. Forbidden to open the housing.
17. Forbidden to splash any liquid on device surface or come into machine.
18. if power code broken or snapped off, stop using it, contact customer service.
19. Make sure device off in transportation, suggest to use original packaging.

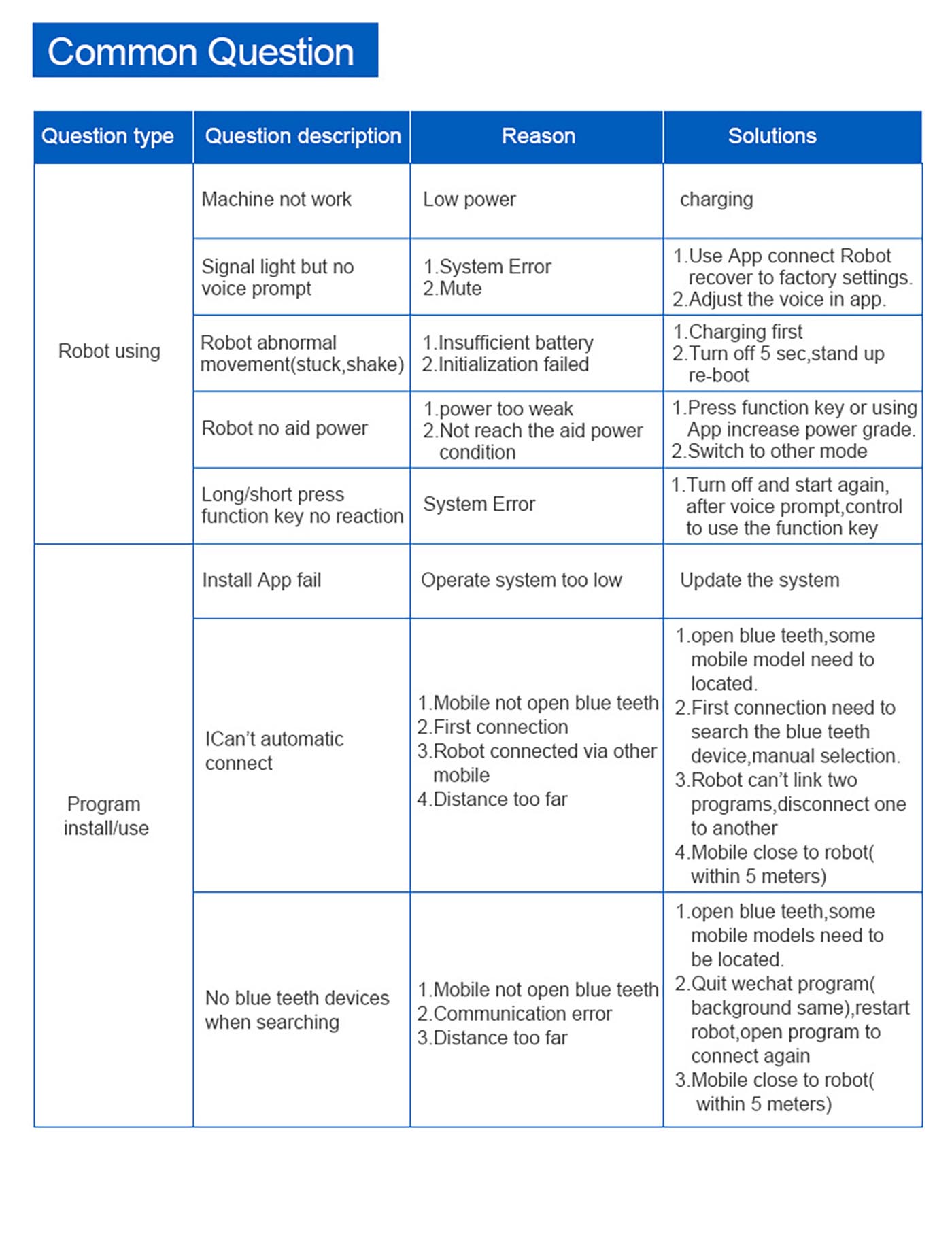

Common Question

Question type	Question description	Reason	Solutions
Robot using	Machine not work	Low power	charging
	Signal light but no voice prompt	1.System Error 2.Mute	1.Use App connect Robot recover to factory settings. 2.Adjust the voice in app.
	Robot abnormal movement(stuck,shake)	1.Insufficient battery 2.Initialization failed	1.Charging first 2.Turn off 5 sec,stand up re-boot
	Robot no aid power	1.power too weak 2.Not reach the aid power condition	1.Press function key or using App increase power grade. 2.Switch to other mode
	Long/short press function key no reaction	System Error	1.Turn off and start again, after voice prompt,control to use the function key
Program install/use	Install App fail	Operate system too low	Update the system

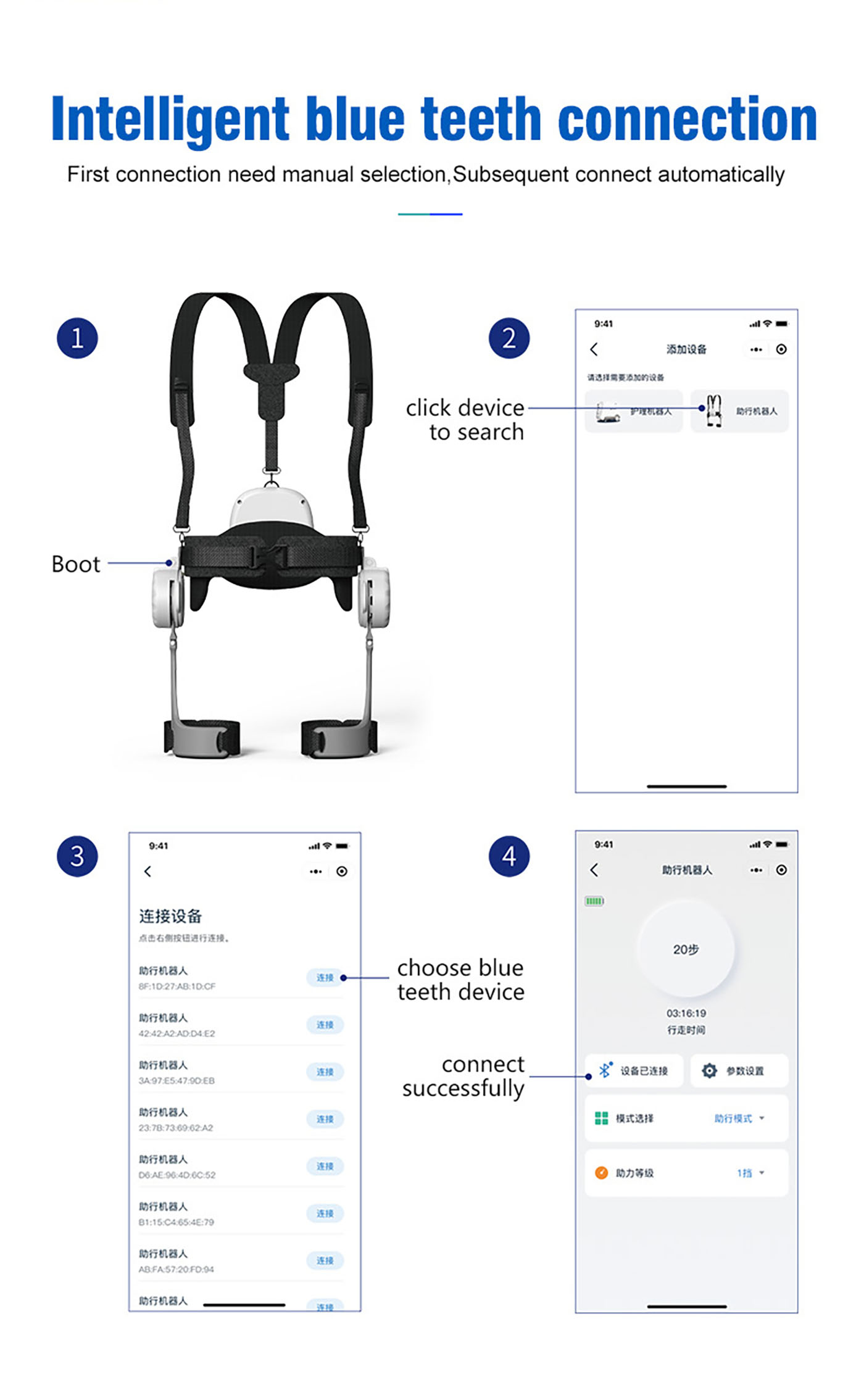

	ICan't automatic connect	1.Mobile not open blue teeth 2.First connection 3.Robot connected via other mobile 4.Distance too far	1.open blue teeth,some mobile model need to located. 2.First connection need to search the blue teeth device,manual selection. 3.Robot can't link two programs,disconnect one to another 4.Mobile close to robot( within 5 meters)
	No blue teeth devices when searching	1.Mobile not open blue teeth 2.Communication error 3.Distance too far	1.open blue teeth,some mobile models need to be located. 2.Quit wechat program( background same),restart robot,open program to connect again 3.Mobile close to robot( within 5 meters)
